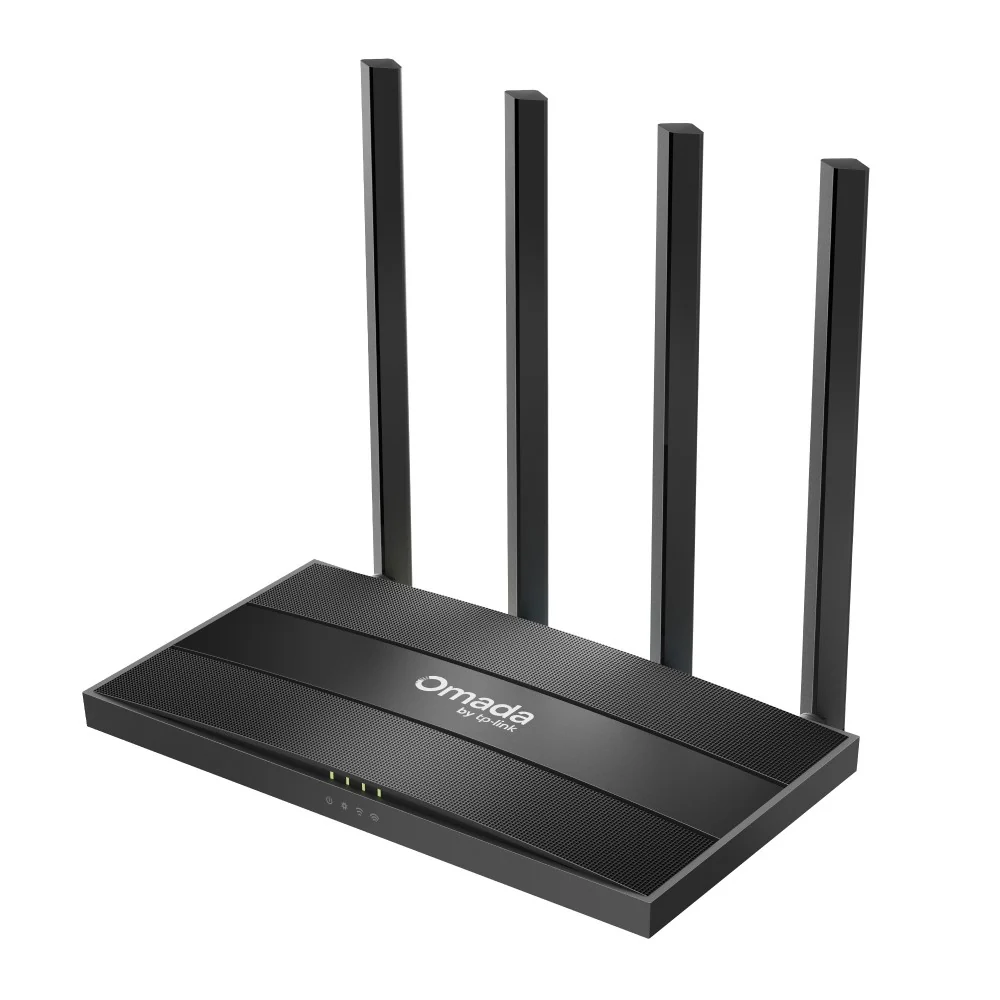

TP-LINK Omada AC1200 Wi-fi Gateway, Gigabit VPN Router ER605W

QUICK FEATURES

• AC1200 Dual-Band WiFi (867 Mbps on 5 G + 300 Mbps on 2.4 G)
• 5× Gigabit Ethernet Ports Provide High-Speed Connectivity
• 4× High-Gain External Antennas for Boosted Coverage
• Load Balancing on up to 3× WAN Ports
• IPSec/PPTP/L2TP/OpenVPN/WireGuard/GRE^△ VPN
• DoS Defense, IP/MAC/URL Filtering, and More Abundant Security Features
• Centralized Cloud Management via Web and Omada App

FEATURES

Smooth Networking Starts with AC1200 Dual Band WiFi

ER605W offers up to 300 Mbps on the 2.4 GHz band for everyday use and up to 867 Mbps on the 5 GHz band for HD streaming and conferencing, suitable for retail, small shops, small chain stores, branch offices, and more.

Up to Five Gigabit Ports for Gigabit Connectivity

ER605W boasts 1 WAN, 2 WAN/LAN, and 2 LAN ports, meeting diverse internet needs. Attach your wired devices like desktops or 4K HDTVs to ER605W for a seamless experience.

Robust Wireless Coverage Means No Dead Ends

Four external antennas send WiFi signals to every corner of your store. Stay connected and enjoy fast WiFi whether you’re working the shelves or register.

High-Security and High-Performance VPN

IPSec/PPTP/L2TP/OpenVPN/WireGuard/GRE△ VPN easily build secure VPN tunnels for secure Internet browsing, communication between different branches, or enabling remote work or study from home.

Software Defined Networking (SDN) with Cloud Access

Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.

Easy Management with the Omada App

Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status, and manage clients, all from the convenience of a mobile device.

SPECS

SECURITY

• Access Control: Source/Destination IP Based Access Control
• DNS Proxy: DNSSEC, DoH, and DoT
• Filtering: WEB Group Filtering, URL Filtering, Web Security
• ARP Inspection: Sending GARP Packets, ARP Scanning, IP-MAC Binding
• Attack Defense: TCP/UDP/ICMP Flood Defense, Block TCP Scan (Stealth FIN/Xmas/Null), Block Ping from WAN

HARDWARE FEATURES

• Standards and Protocols: IEEE 802.3, 802.3u, 802.3ab, IEEE 802.3x, IEEE 802.1q, TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP
• Interface: 1 Gigabit WAN Port, 2 Gigabit WAN/LAN Ports, 2 Gigabit LAN Ports
• Button: Reset Button
• Wi-Fi Frequency & Signal Rate: 2.4 GHz: 300 Mbps, 5 GHz: 867 Mbps
• Power Supply: External 12V/1A DC Adapter
• Flash: 128 MB NAND
• DRAM: 256 MB DDR3
• LED: PWR, SYS, WAN (Link/Act), LAN (Link/Act)
• Dimensions ( W x D x H ): 215 × 117 × 31mm
• Max Power Consumption: 9.3 W

PERFORMANCE

• GRE: Unencrypted: 180.1 Mbps, Encrypted: 56.9 Mbps
• WireGuard VPN: 71.2 Mbps
• Concurrent Session: 50,000
• New Sessions /Second: 2,028
• NAT (Static IP): 909.3Mbps/937.5 Mbps
• NAT(DHCP): 938.3 Mbps /888.2 Mbps
• NAT(PPPoE): 929.9 Mbps /929.2 Mbps
• NAT (L2TP): 346.9 Mbps /337.6 Mbps
• NAT (PPTP): 487.1 Mbps/454.3 Mbps
• IPsec VPN Throughput (AES256): ESP-SHA1-AES256: 175.5 Mbps, ESP-SHA256-AES256: 185.9 Mbps, ESP-SHA384-AES256: 30.9 Mbps, ESP-SHA512-AES256: 30.7 Mbps
• OpenVPN: 16.8 Mbps
• L2TP VPN Throughput: Unencrypted: 400.3 Mbps, Encrypted: 127.5 Mbps
• PPTP VPN Throughput: Unencrypted: 523.6 Mbps, Encrypted: 52.7 Mbps

BASIC FUNCTIONS

• WAN Connection Type: Static/ Dynamic IP, PPPoE, PPTP, L2TP
• MAC Clone: Modify WAN Address
• DHCP: DHCP Server, DHCPv6 PD Server (only in Standalone Mode), DHCP Address Reservation, DHCP Options Customization, Multi-net DHCP, Multi-IP Interfaces
• IPv6: StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-address Mode
• VLAN: 802.1Q VLAN
• IPTV: GMP v2/v3 Proxy, Custom Mode, Bridge Mode
• Other Basic Functions: Stateful ACL, Quality of Service, Bridge VLAN, mDNS Repeater

WIRELESS FEATURES

• Multiple SSIDs: 16 in total (8 per radio)
• Enable/Disable Wireless Radio
• Enable/Disable SSID Broadcast
• Automatic Channel Selection Algorithm
• Transmit Power Control: Adjust transmit Power on dBm
• Rate Limit: Based on SSID/Client
• Load Balance
• Band Steering
• RADIUS Accounting
• MAC Authentication
• Wireless Schedule
• Wireless Encryption: WPA/WPA2 Personal, WPA/WPA2 Enterprise

ADVANCED FUNCTIONS

• Advanced Routing: Static Routing, Policy Routing, RIP, OSPF
• Bandwidth Control: IP-based Bandwidth Control
• Load Balance: Intelligent Load Balance, Application Optimized Routing, Link Backup (Timing, Failover), Online Detection
• NAT: One to One NAT, Multi-Net NAT, Virtual Server, Port Triggering, NAT-DMZ, FTP/H.323/SIP/IPSec/PPTP ALG, UPnP
• Session Limit: IP-based Session Limit

VPN

• GRE: Only in Standalone Mode
• IPsec VPN: 6 IPSec VPN Tunnels, LAN-to-LAN, Client-to-LAN, Main, Aggressive Negotiation Mode, DES, 3DES, AES128, AES192, AES256 Encryption Algorithm IPsec, Failover, IKE v1/v2, MD5, SHA1, SHA-256, SHA2-384 and SHA2-512 Authentication, Algorithm NAT Traversal (NAT-T), Dead Peer Detection (DPD), Perfect Forward Secrecy (PFS)
• PPTP VPN: PPTP VPN Server, PPTP VPN Client (6) 6 Tunnels, PPTP with MPPE Encryption
• L2TP VPN: L2TP VPN Server L2TP VPN Client (6) 6 Tunnels, L2TP over IPSec
• OpenVPN: OpenVPN Server OpenVPN Client (3), 18 OpenVPN Tunnels, "Certificate + Account" Mode, Full Mode
• WireGuard VPN: Yes

AUTHENTICATION

• Web Authentication: No Authentication, Simple Password, Hotspot (Local User / Voucher / SMS / Radius), External Radius Server, External Portal Server, LDAP


MANAGEMENT

• Omada App: Yes
• Centralized Management: Omada Hardware Controller, Omada Software Controller, Omada App
• Service: Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)
• Maintenance: Web Management Interface, Remote Management, Export & Import Configuration, Diagnostics (Ping & Traceroute), NTP Synchronize, Port Mirroring, Syslog Support
• Management Features: Automatic Device Discovery, Intelligent Network Monitoring, Abnormal Event Warnings, Unified Configuration, Reboot Schedule, Captive Portal Configuration

OTHERS

• Certification: CE, FCC, RoHS
• Package Contents: 1 x ER605W, Power Adapter, RJ45 Ethernet Cable, Quick Installation Guide
• System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11, MAC OS, NetWare, UNIX or Linux
• Operating Temperature: 0–40 ℃ (32–104 ℉)
• Operating Humidity: 10–90% RH non-condensing
