TP-LINK Gigabit PoE+ Injector TL-POE160S

Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
Product image 6
Product image 7

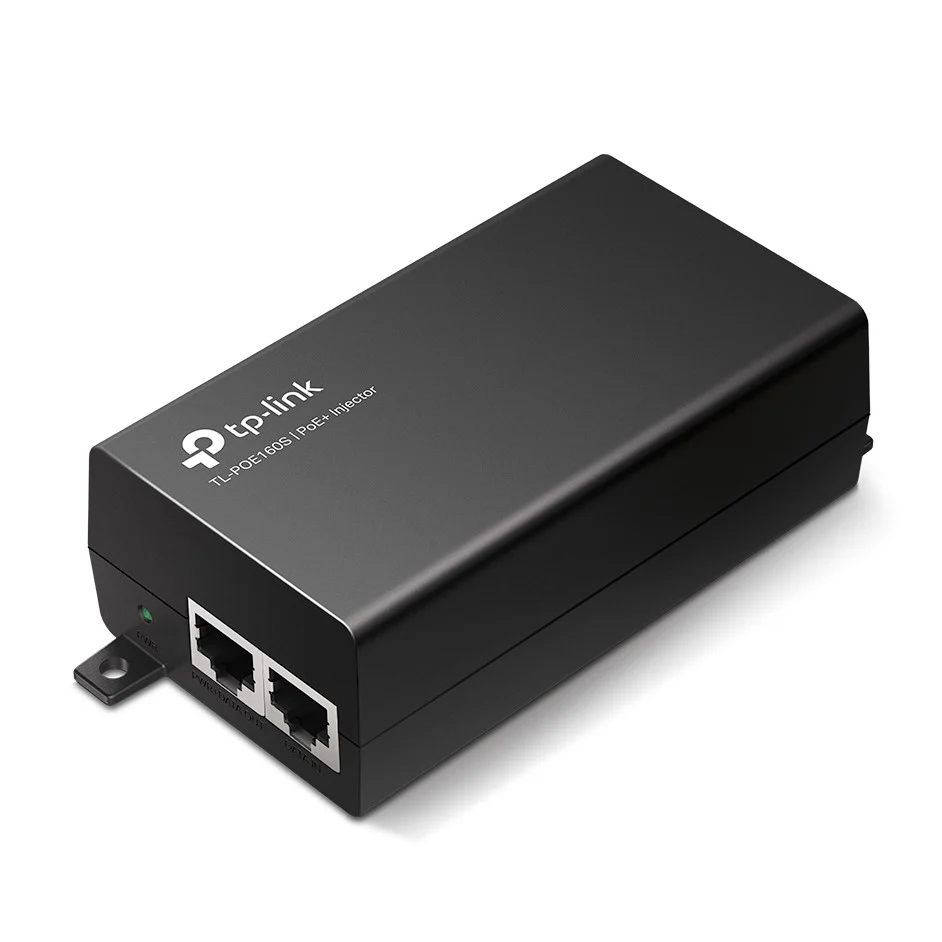

TP-LINK Gigabit PoE+ Injector TL-POE160S

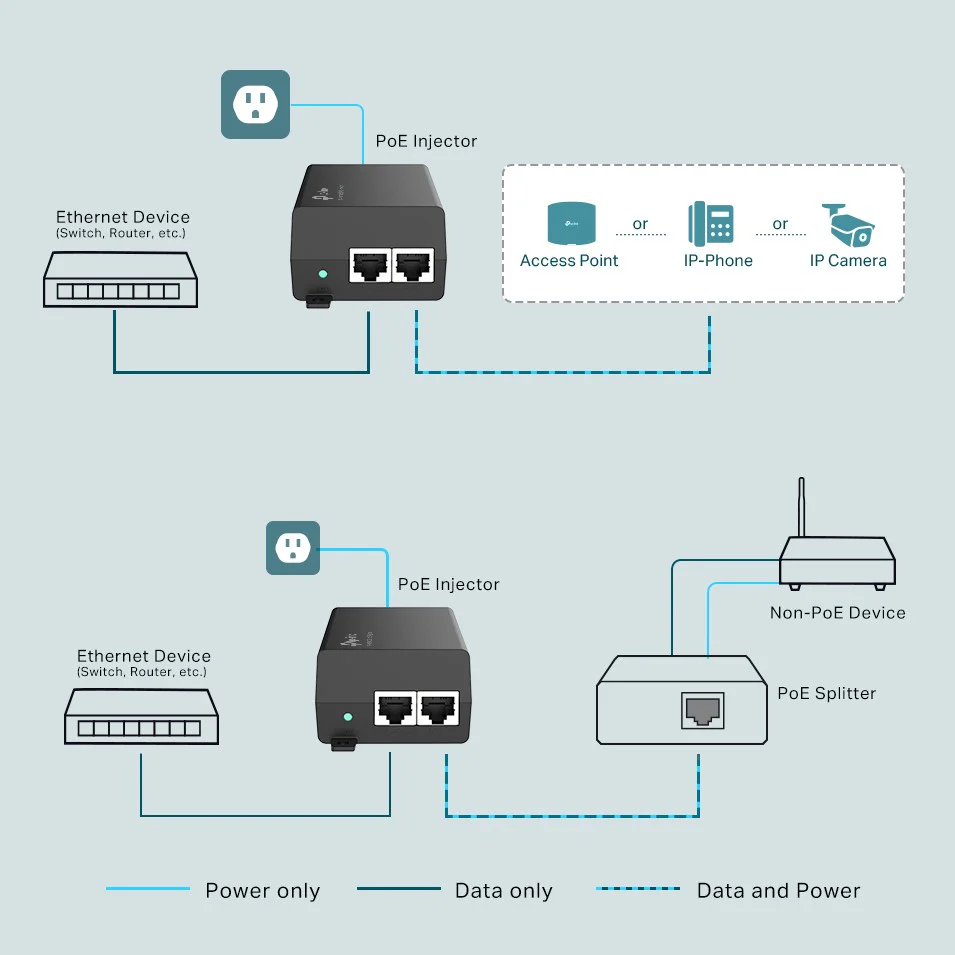

The PoE Injector TL-POE160S fully complies with IEEE 802.3af/at standards, and can work with all IEEE 802.3af/at PoE compliant PDs (Powered Devices) or PoE Receiver Adapters, such as TP-LINK’s TL-POE10R, or other equivalent product, to expand your network to where there are no power line or outlet, where you wish to fix device such as AP, IP Camera or IP Phone, etc.
  • IEEE 802.3af/at standards, supplies upto 30 W
  • 2 Gigabit ports ensure faster transmission
  • Reduces infrastructure costs by transmitting data and power simultaneously via an Ethernet cable
  • Auto-determine the necessary power requirements
  • Wall-mounting and desktop design accommodates most installation scenarios
  • Plug-and-Play, requires no configuration
  • Integrated power supply

Specs


HARDWARE FEATURES

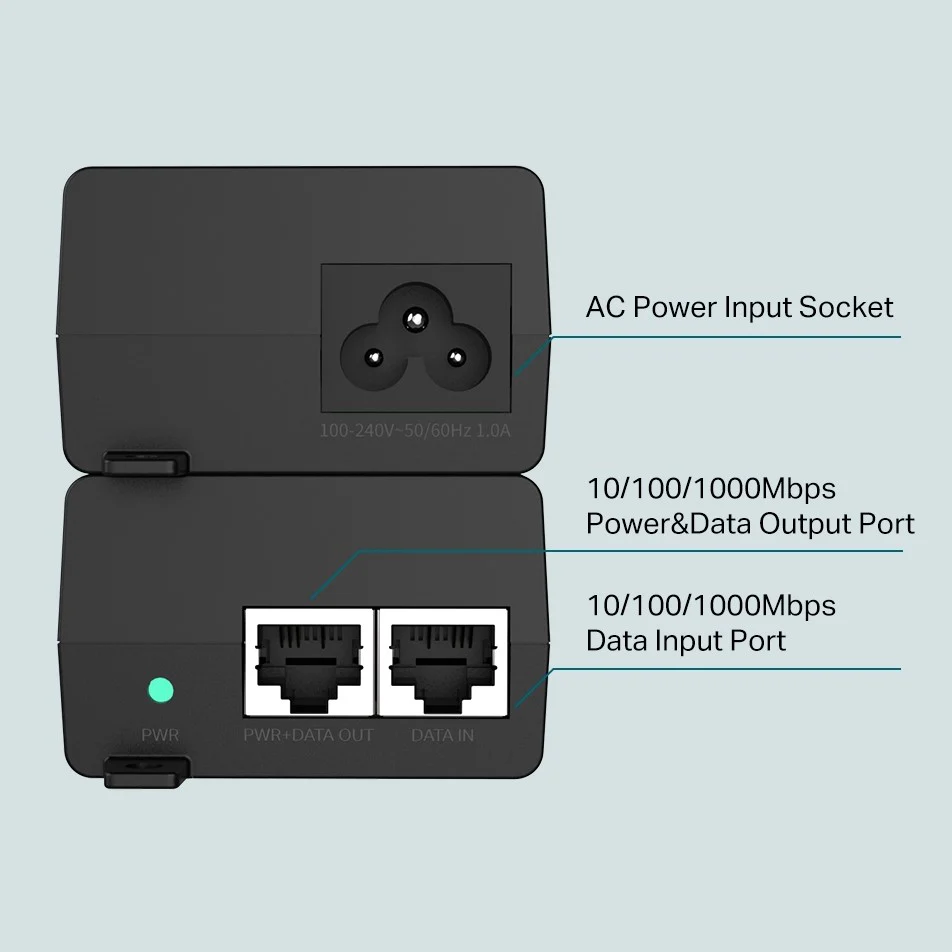

  • Interface: 1 x 10/100/1000Mbps RJ45 data-in port, 1 x 10/100/1000Mbps RJ45 power+data-out port, 1 x AC power port
  • Network Media: 10BASE-T: UTP category 3, 4, 5 cable (Max 100m), EIA/TIA-568 100Ω STP (Max 100m), 100BASE-TX: UTP category 5, 5e cable (Max 100m), EIA/TIA-568 100Ω STP (Max 100m), 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)
  • Power Input: 100-240 V, 50/60 Hz
  • Power Output: Auto-determine the necessary power requirements (max. 30 W)
  • LED Indicator: PWR
  • Dimensions ( W x D x H ): 125 × 59 × 37 mm
  • Basic Functions: Auto-Sensing Algorithm enables providing power with 802.3af/at PD, Auto-determine the necessary power requirements, Wall-mounting and desktop installation supported, Plug-and-Play

NETWORK

  • Standards and protocols: IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at

OTHERS

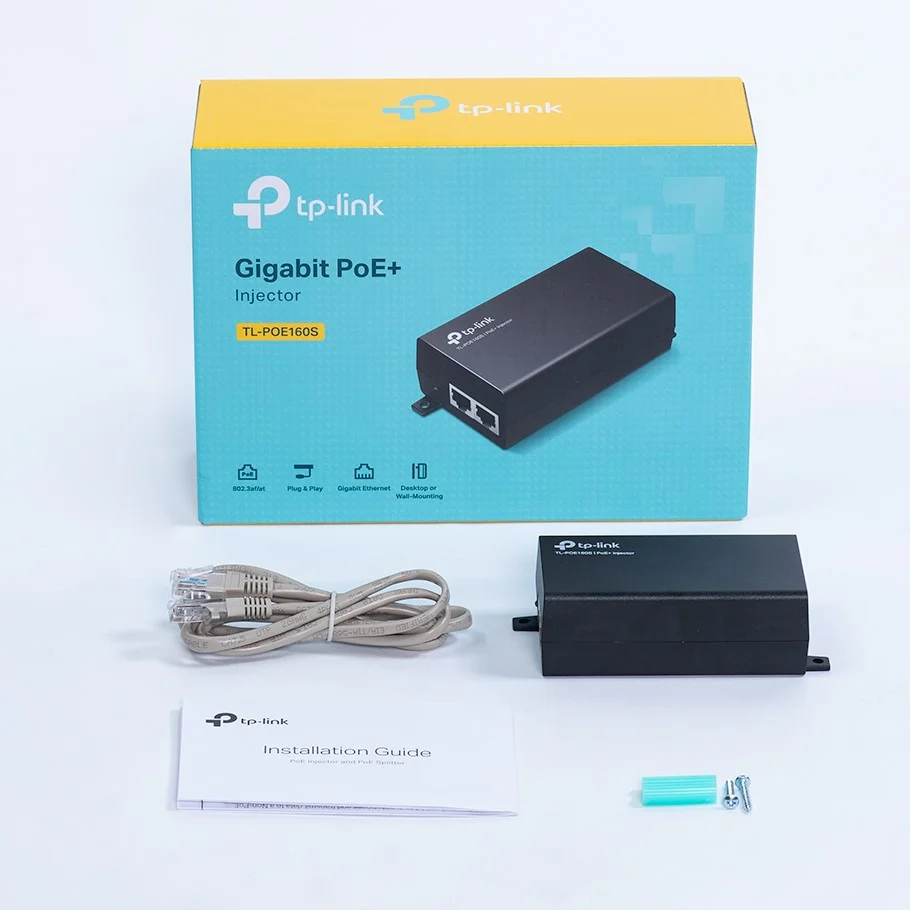

  • Package Contents: Gigabit PoE+ Injector TL-POE160S, Power Cord, RJ45 Cable, Installation Guide, Wall Mount Kit
  • Operating Temperature: 0℃~40℃ (32℉~104℉)
  • Operating Humidity: 10%~90% non-condensing
$31.51
TP-LINK Gigabit PoE+ Injector TL-POE160S—
$31.51

Product Information

Shipping & Returns

Description

The PoE Injector TL-POE160S fully complies with IEEE 802.3af/at standards, and can work with all IEEE 802.3af/at PoE compliant PDs (Powered Devices) or PoE Receiver Adapters, such as TP-LINK’s TL-POE10R, or other equivalent product, to expand your network to where there are no power line or outlet, where you wish to fix device such as AP, IP Camera or IP Phone, etc.
  • IEEE 802.3af/at standards, supplies upto 30 W
  • 2 Gigabit ports ensure faster transmission
  • Reduces infrastructure costs by transmitting data and power simultaneously via an Ethernet cable
  • Auto-determine the necessary power requirements
  • Wall-mounting and desktop design accommodates most installation scenarios
  • Plug-and-Play, requires no configuration
  • Integrated power supply

Specs


HARDWARE FEATURES

  • Interface: 1 x 10/100/1000Mbps RJ45 data-in port, 1 x 10/100/1000Mbps RJ45 power+data-out port, 1 x AC power port
  • Network Media: 10BASE-T: UTP category 3, 4, 5 cable (Max 100m), EIA/TIA-568 100Ω STP (Max 100m), 100BASE-TX: UTP category 5, 5e cable (Max 100m), EIA/TIA-568 100Ω STP (Max 100m), 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)
  • Power Input: 100-240 V, 50/60 Hz
  • Power Output: Auto-determine the necessary power requirements (max. 30 W)
  • LED Indicator: PWR
  • Dimensions ( W x D x H ): 125 × 59 × 37 mm
  • Basic Functions: Auto-Sensing Algorithm enables providing power with 802.3af/at PD, Auto-determine the necessary power requirements, Wall-mounting and desktop installation supported, Plug-and-Play

NETWORK

  • Standards and protocols: IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at

OTHERS

  • Package Contents: Gigabit PoE+ Injector TL-POE160S, Power Cord, RJ45 Cable, Installation Guide, Wall Mount Kit
  • Operating Temperature: 0℃~40℃ (32℉~104℉)
  • Operating Humidity: 10%~90% non-condensing
