HAFELE Door Handle Set 90392586 LDH 2170

Handle 90392586

• Material: Stainless steel
• Quality: 1.4301/AISI 304
• Substructure: Metal
• Finish: Satin
• Bearing: Lever handle pivot-fitted in rose, sprung
• Suitable for door thickness: 38 to 55mm

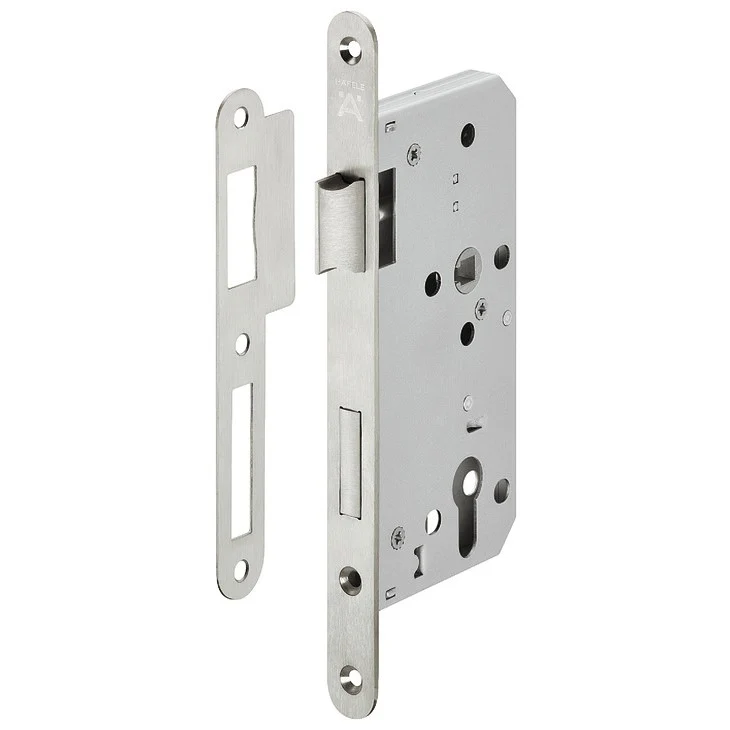

Mortice Lock 91102151

• Backset A: 55 mm
• Mounting: DIN left and DIN right, reversible
• Area of application: For rebated or flush doors
• Forend, latchbolt and deadbolt material: Stainless steel
• Lock case material: Steel
• Deadbolt pocket material: Plastic
• Type of locking: Prepared for profile cylinder
• Deadbolt: 2-turn
• Version: With key action
• Forend: Round
• Lever follower: 8 mm
• Distance B: 72 mm
• Standard: Certified in compliance with EN 12209:2003
• What's in the box: 1 mortice lock, 1 flanged striking plate, 2 deadbolt pockets

Double Standard Profile Cylinder 91659007

• Keyed to differ with reversible key
• Cylinder housing material: Brass
• Finish: Nickel plated
• Type of locking: Keyed to differ
• Locking system: With 5 pin tumblers
• What's in the box: 1 cylinder (double, single or thumbturn cylinder), 3 keys, nickel plated steel, 1 fixing screw
