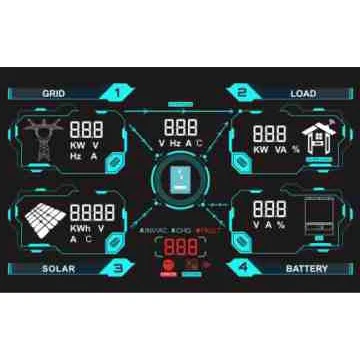

FORTUNER FR10200, 10.2KVA, 10200VA, 1-Phase, Wifi, Wall Mount Solar Inverter With LCD Screen, 48VDC

FEATURES

• Pure sine wave solar inverter (on/ off grid)
• Output power factor 1.0
• Wifi and GPS available for IOS and Android
• Inverter can run without battery
• One- key restoration to factory settings
• Built-in Li battery automatic activation
• Built-in 160a MPPT solar charger
• Dual communications ports for battery communication and wifi communication
• High PV input voltage range (90-500vdc)
• Built-in anti dust kit for harsh environments
• Smart battery charge design to optimize battery life
• Dual output
• Dual PV input
• Touch buttons
• On Off Grid Work Mode

SPECS

• Phase: 1-single phase
• Max. PV input power: 5400w+5400w
• Rated output power: 10200w/ 10200va
• Max. solar charging current: 160a

GRID-TIE OPERATION

PV input (DC)

• Nominal DC voltage/ Maximum DC Voltage: 360/ 500vdc
• Start-up voltage: 90vdc
• MPPT voltage range: 90-450vdc
• Max. input current: 2/ 18a

Grid output (AC)

• Nominal output voltage: 220/ 230/ 240vac
• Output voltage range: 195-253vac
• Nominal output current: 44.3a
• Power factor: >0.99


Two load output power

• Full load: 10200w
• Max. main load: 10200w
• Max. second load (battery mode): 3400w
• Max. load cut off voltage: 52vdc
• Max. load return voltage: 54vdc

 OFF GRID OPERATION

 AC input

• AC start-up voltage/ auto restart voltage: 120-140vac/ 180vac
• Frequency range: 59-61 +- Hz
• Max. AC input current: 60a

PV input (DC)

• Nominal DC voltage/ Maximum DC voltage: 360/ 500vdc
• MPPT voltage range: 90-450vdc
• Max. input current: 2/ 18a

Battery mode output (AC)

• Nominal output voltage: 220/ 230/ 240vac
• Output waveform: Pure sine wave
• Efficiency (DC to AC): 94%

Battery and charger

• Nominal DC voltage: 48vdc
• Max. solar charging current: 160a
• Max. AC charging current: 140a
• Max. solar + AC charging current: 160a

HYBRID OPERATION

PV input (DC)

• Nominal DC voltage/ maximum DC voltage: 360/ 500vdc
• Start-up voltage: 90vdc/ 120vdc
• MPPT voltage range: 90-450vdc
• Max. input current: 2/ 18a

Grid output (AC)

• Nominal output voltage: 220/ 230/ 240vac
• Output voltage range: 195-253vac
• Nominal output current: 44.3a

AC input

• AC start-up voltage/ Auto restart voltage: 120-140vac/ 180vac
• Max. AC input current: 60a
• Max. AC charging current: 140a

GENERAL SPECS

• Dimensions (D x W x H): 530 x 390 x 130mm
• Net weight: 14.2kg
• Communications port interface: RS232, RS485, Wi-fi, GPRS, Li. Battery
• Operating temperature: -10-50 degrees C
• Batteries: NOT INCLUDED, must be bought separately as per requirement. Click here to see battery options that we offer
