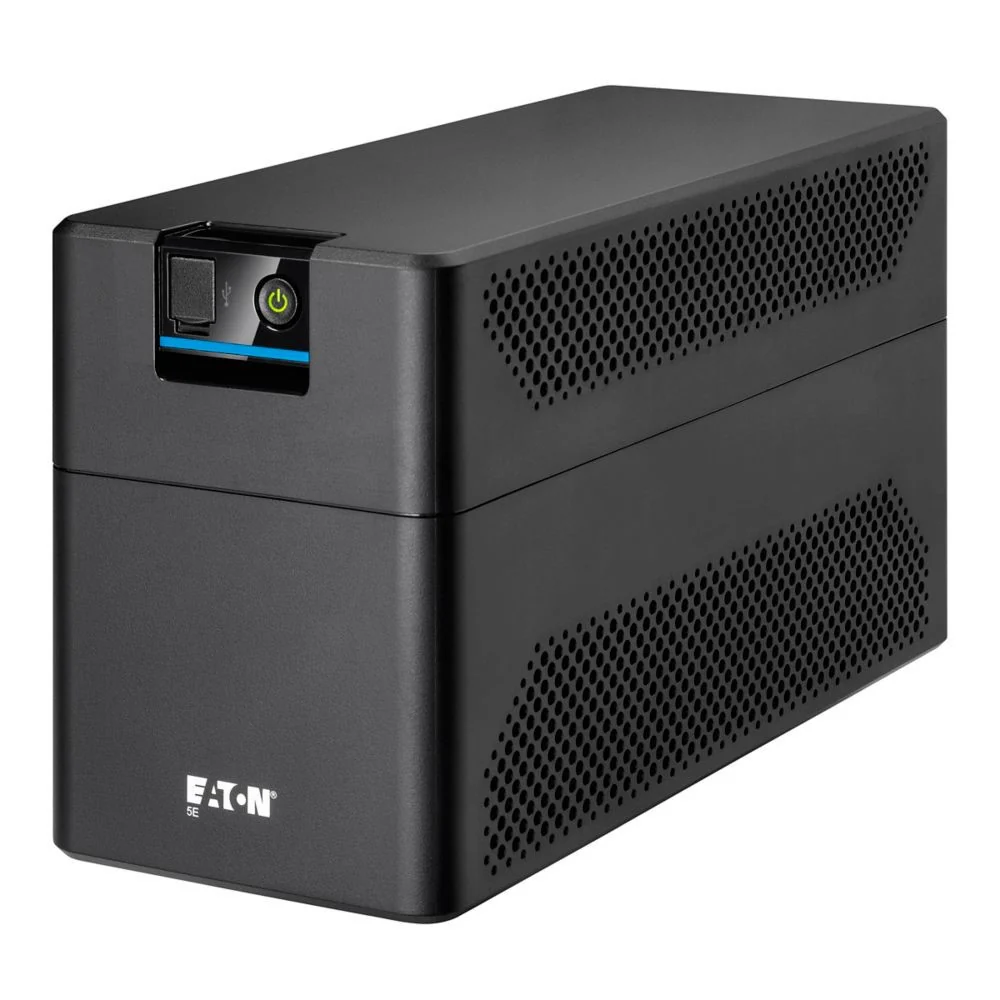

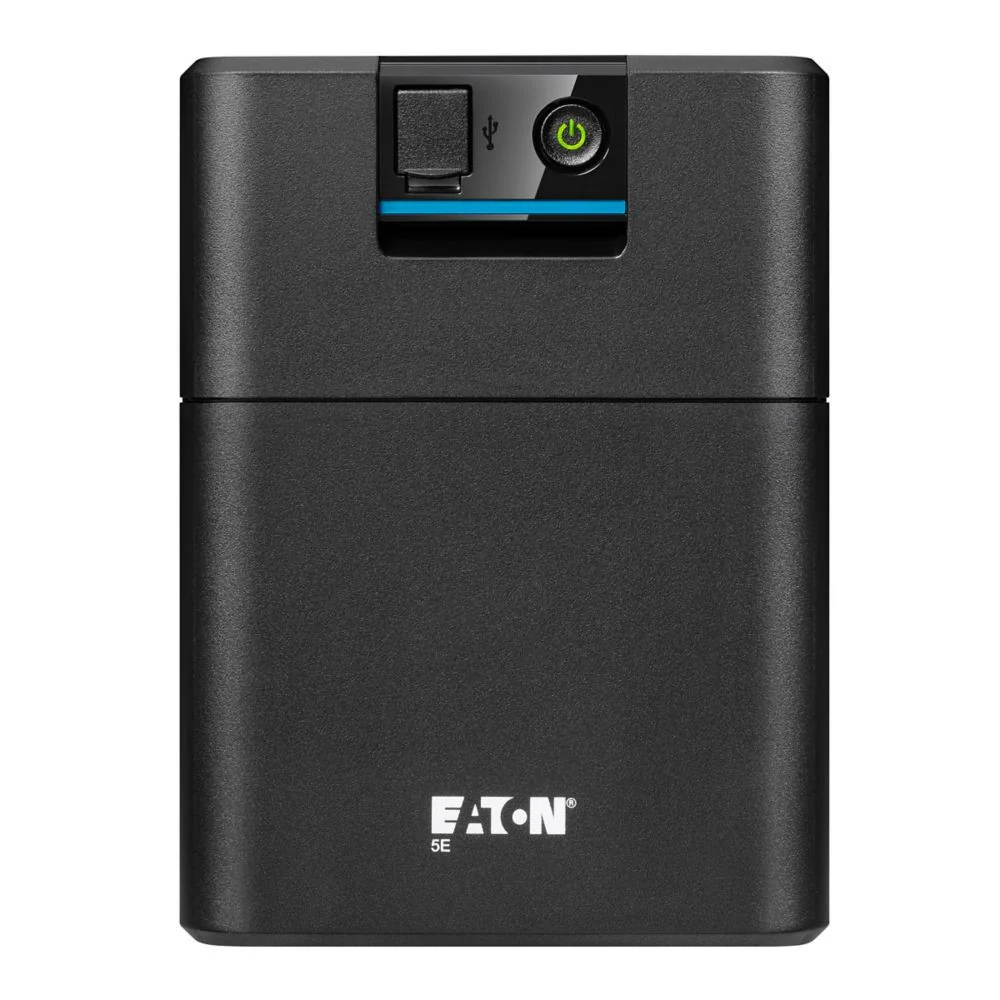

EATON UPS 5E Gen2 Series, 2200VA, 230V, 6 IEC C13 Sockets + USB, AVR, 5E2200UI

Eaton 5E Gen2 delivers efficient, affordable power protection for critical applications in both residential and professional settings.

• Eaton 5E Gen2 UPS protects application and data against power loss
• Double-boost Automatic Voltage Regulation (AVR) technology regulates grid fluctuations (under and overvoltage) to save battery power in the event of power outage
• HID-compliant USB port, for automatic integration with major operating systems (Windows/Mac OS/Linux)
• A wide product range covers the power requirements of many IT devices
• Auto-restart function enables the UPS to restart automatically when mains power recovers after a total battery discharge
• Fan-less design ensure silent operation

TECHNICAL SPECS

Physical

• Dimensions: 330 x 180 x 133 mm
• Net weight: 9.8 kg
• Mounting support: Floor
• USB communication: Yes, 1 x USB port

Input

• Network frequency: 50/60 Hz ( 46/65 Hz working range)
• Input voltage without battery: 140V-300V
• Input nominal voltage: 220V-240V
• Input plug: C14 plug

Output

• Maximum configurable power in W: 1200 W
• UPS type: Line interactive
• Output voltage: 195V-257V
• Maximum configurable power in VA: 2200 VA
• Output sockets: 6 x IEC C13 Sockets
• Efficiency at max. load: 95%

Environmental

• Ambient air temperature for operation: 0…40 °C
• Operating altitude: 0...3000 m

Batteries & Runtime

• Battery recharge time: 8 h
• Battery voltage: 12 V
• Battery capacity: 7.0 Ah
• Management: Automatic battery test, deep-discharge protection, cold-start capable
