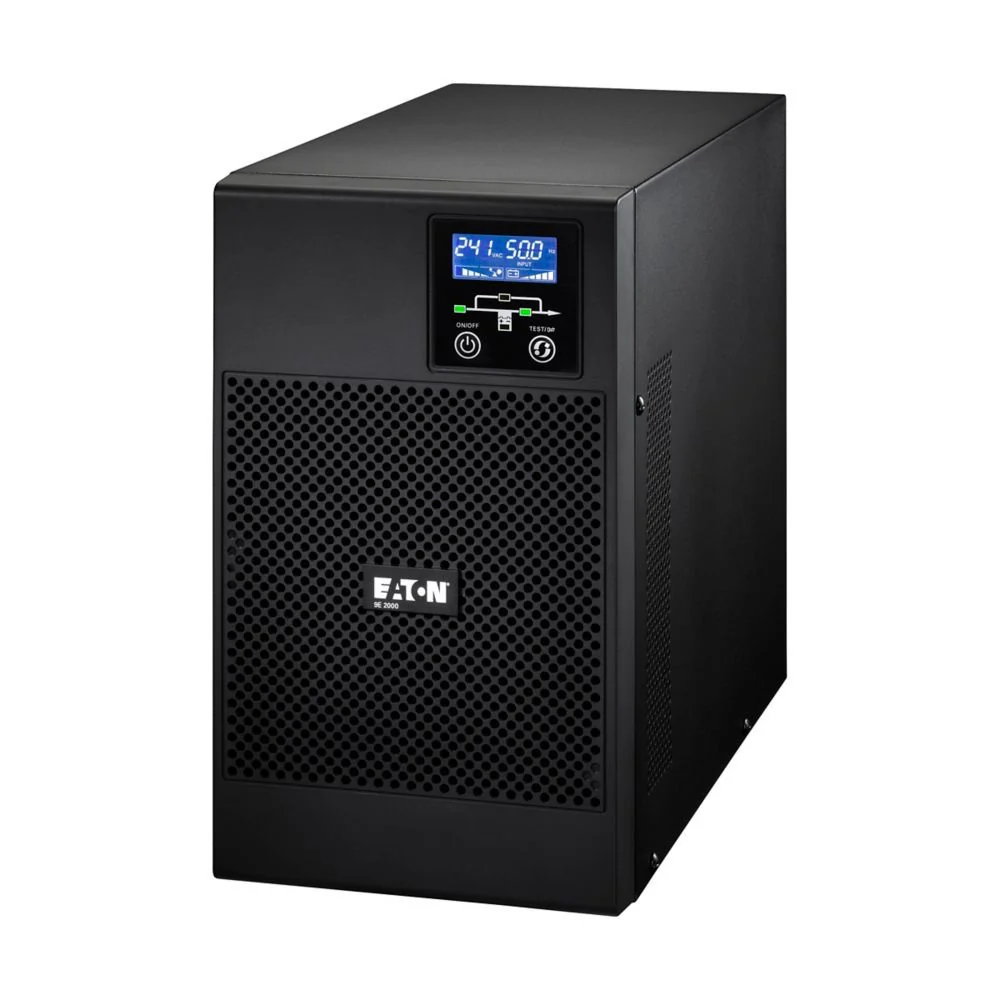

EATON 9E Smart Online UPS, 2000VA, 230V, 6 IEC C13 Sockets, USB, RS232 Serial, 9E2000I

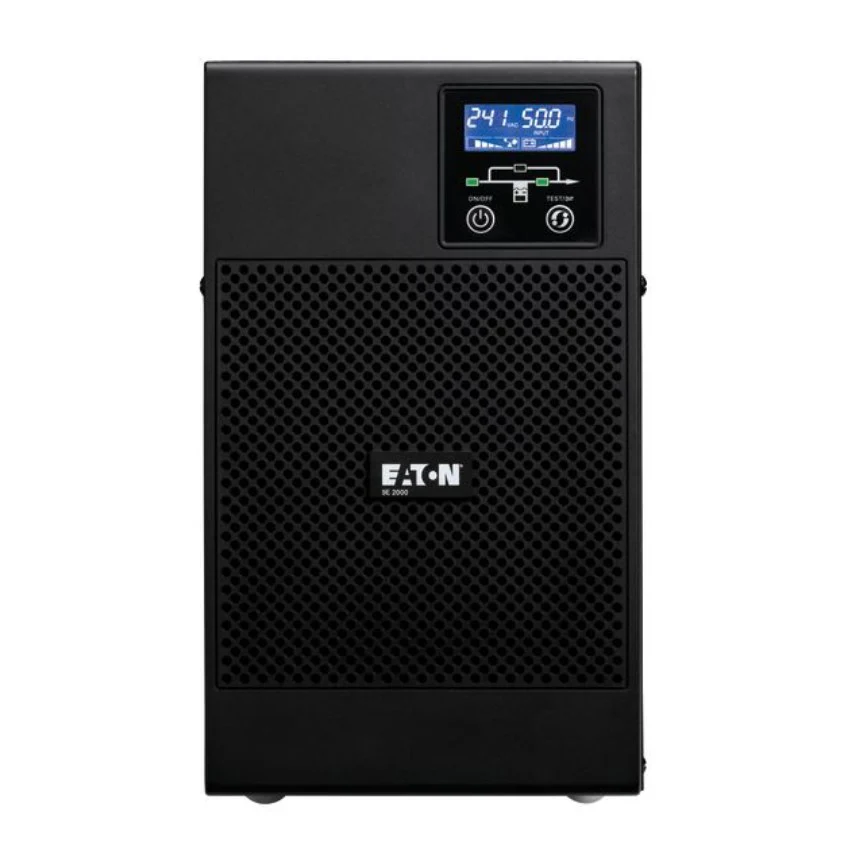

• Get clear information on the UPS’ status and measurements (load level, battery level, input/output voltage and frequency) on a single screen with the new LCD interface
• Easily communicate with the UPS through USB, RS232 serial or over the network with the optional network card (NOT supplied with this product)
• Integrate 9E into all software environments. The Eaton 9E is delivered with Eaton’s Intelligent Power™ Software and is compatible with all major OS including advanced integration in VMware vCenter and Microsoft Hyper-V
• Auto shutdown function

TECHNICAL SPECS

Physical

• Dimensions: 399 x 330 x 190 mm
• Net weight: 22.1 kg
• Mounting support: Floor

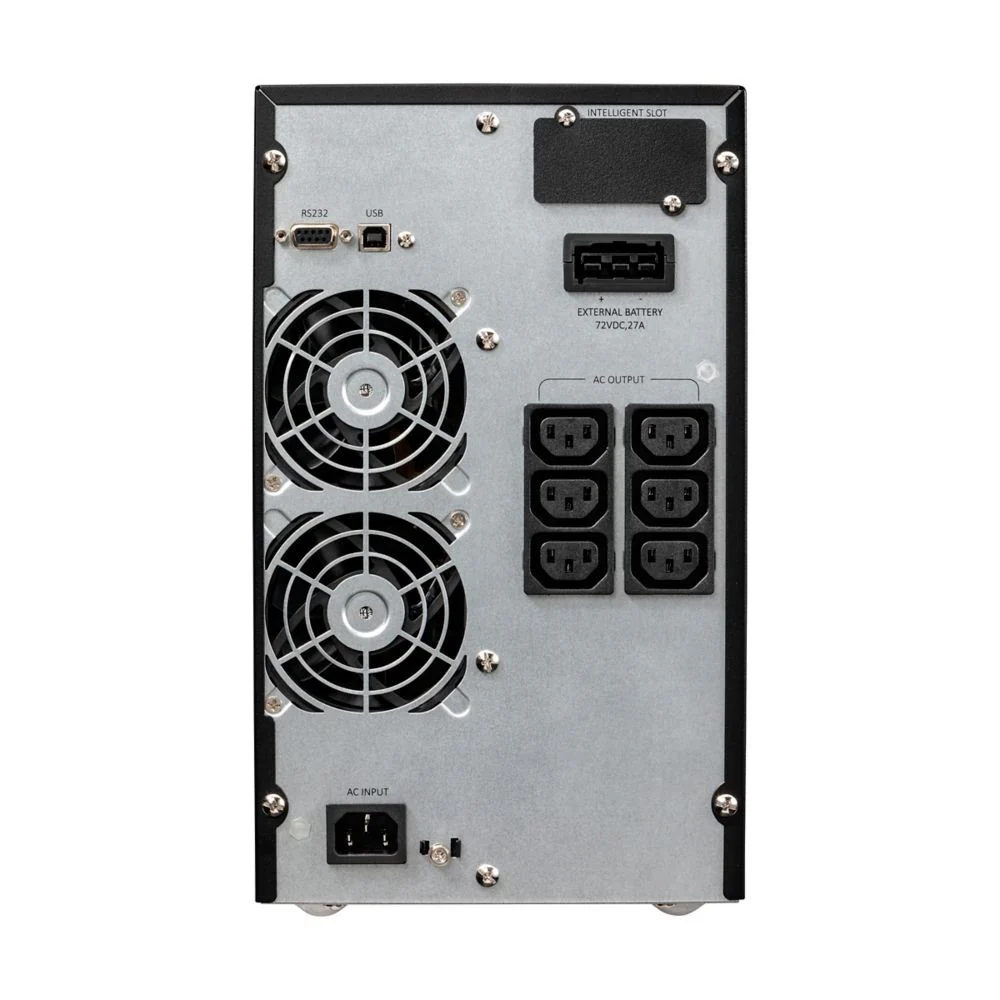

• Communication: USB, RS232 Serial
• Optional Communication: Smart slot (Not included)

Input

• Nominal frequency: 50/60 Hz ( 46/65 Hz working range)
• Input voltage without battery: 176V-300V
• Input nominal voltage: 230V default
• Input plug: C14 plug

Output

• Maximum configurable power in W: 1600 W
• UPS type: Online
• Output voltage range: 220V-240V
• Maximum configurable power in VA: 2000 VA
• Output sockets: 6 x IEC C13 Sockets

Environmental

• Ambient air temperature for operation: 0…40 °C
• Operating altitude: 0...3000 m

Batteries & Runtime

• Battery voltage: 12 V
• Battery capacity: 7.0 Ah x 6pcs
• Management: Automatic battery test, deep-discharge protection
