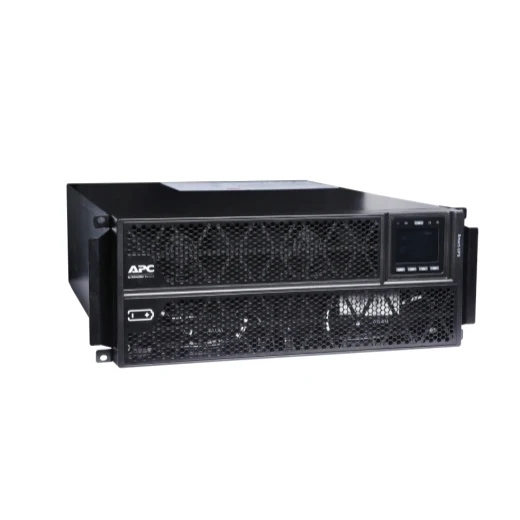

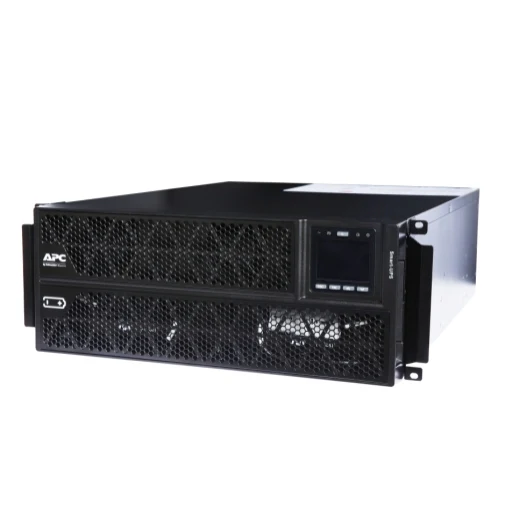

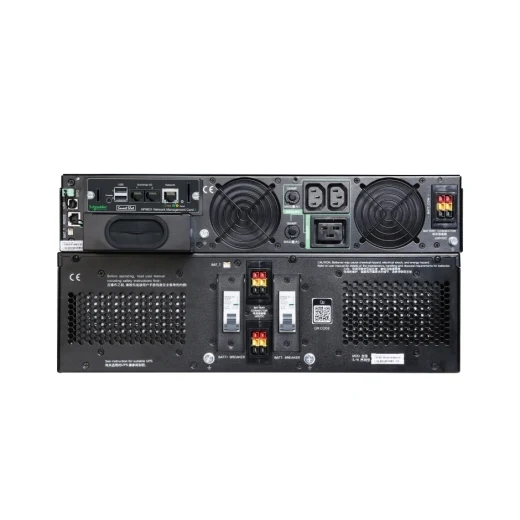

APC Smart-UPS RT 6 kVA 6000VA, 230V, LCD, 2x IEC 60320 C13 & 1x IEC 60320 C19 outlets SRTG6KXLI
Key Features
- 6kVA/6kW double-conversion on-line pure sine wave rack/tower UPS
- Ideal for servers, storage, voice/data networks, medical labs, and light industrial applications
- Rack/tower convertible (SRTGRK1 rail kit sold separately)
- Add up to 4 external battery packs (SRTG192XLBP4) for extended runtime
Specifications
Output
- Max Configurable Power (Watts): 6.0kWatts / 6.0kVA
- Output Voltage Note: Configurable for 220 : 230 or 240 nominal output voltage
- Output Voltage Distortion: Less than 2 %
- Output Frequency (sync to mains): 50/60 Hz +/- 3 Hz Sync to mains
- Other Output Voltages: 220 V, 240 V
- Load Crest Factor: 3 : 1
- Topology: Double conversion online
- Waveform type: Sine wave
- Bypass: Internal bypass (automatic and manual)
Input
- Input frequency: 40 - 70 Hz Auto-sensing
- Input voltage range for main operations: 160 - 285V
- Other Input Voltages: 220 V, 240 V
Batteries & Runtime
- Battery type: Lead-acid battery
- Included Battery Modules: 2
- Typical recharge time: 4hour(s)
- Nominal Battery Voltage: +/- 96 V
- Battery Charge Power (Watts): 239 Watts
- Extendable Run Time: 1
- Battery Volt-Amp-Hour Capacity: 960
- Runtime: View Runtime Graph
Communications & Management
- Interface Port(s): RJ-45 Serial, Smart-Slot, USB
- Control panel: LED Status display with on line : on battery, Multifunction LCD status and control console
- Audible Alarm: Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
- Emergency Power Off (EPO): Yes
Physical
- Height: 178MM, 17.78CM
- Width: 440MM, 44.0CM
- Depth: 620MM, 62.0CM
- Net Weight: 51.9KG
- Shipping weight: 59.0KG
Environmental
- Operating Temperature: 0 - 40 °C
- Operating Relative Humidity: 0 - 95 (Non-condensing) %
- Operating Elevation: 0 - 2011.68meters
- Storage Temperature: -15 - 45 °C
- Storage Relative Humidity: 0 - 95 (Non-condensing) %
- Storage Elevation: 0 - 15240meters
- Audible noise at 1 meter from surface of unit: 55.0dBA
- Online thermal dissipation: 1331.0BTU/hr
- Protection Class: IP20
