APC Easy UPS On-Line SRV 1000VA 230V, 3 IEC Sockets, SRV1KI

High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions.


TECHINICAL SPECS

Overview

  • Run time for load 800W: 3min 49s
  • Max. Capacity Used: 100 %
  • Main Input Voltage: 230 V
  • Other Input Voltage: 220 V / 240 V
  • Main Output Voltage: 230 V
  • Other Output Voltage: 220 V / 240 V
  • Rated power in W: 800 W
  • Rated power in VA: 1000 VA

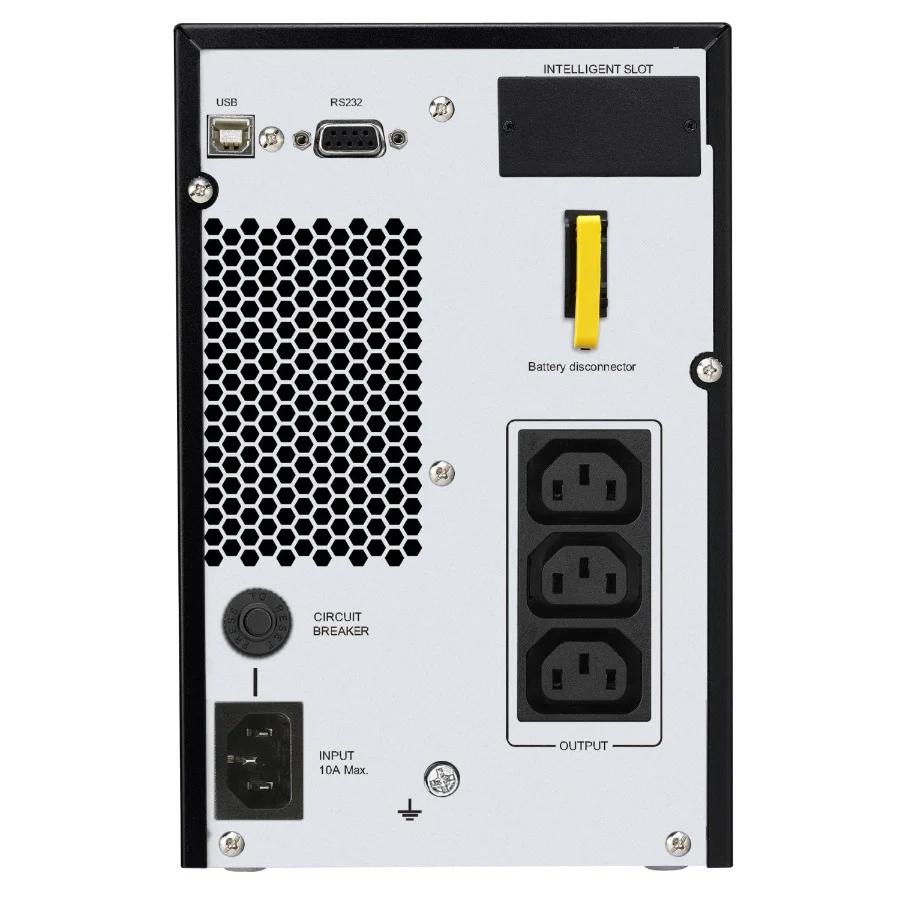

  • Input Connection Type: IEC 60320 C14
  • Output connection type: 3 IEC 60320 C13
  • Cable length: 1.50 m
  • Provided equipment: 1 IEC 60320 C13 to Schuko power cable, 1 IEC 60320 C13 to C14 power cable, 1 USB cable, 1 RS-232 configuration cable, user manual

    Physical

    • Height: 22.3 cm
    • Width: 14.5 cm
    • Depth: 28.8 cm
    • Net weight: 9.3 kg
    • Package weight: 10.6 kg

    Input

    • Input voltage limits: 110...285 V half load, 160...280 V full load
    • Network frequency: 40...70 Hz auto sensing

    Output

    • Maximum configurable power in VA: 1000 VA
    • Maximum configurable power in W: 800 W
    • Output frequency: 50/60 Hz +/- 3 Hz sync to mains
    • Harmonic distortion: 3 %
    • UPS type: Double conversion online
    • Wave type: Sine wave
    • Efficiency: 88 % (full load)
    • Crest factor: 3 : 1

    Environment

    • Ambient air temperature for operation: 0…40 °C
    • Relative humidity: 0…95 % non-condensing
    • Operating altitude: 0...3000 m
    • Ambient air temperature for storage: -20…50 °C
    • Storage Relative Humidity: 0…95 % non-condensing
    • Storage altitude: 0…15000 m
    • Acoustic level: 50 dBA
    • Heat dissipation: 372 Btu/h
    • IP degree of protection: IP20

    Batteries & Runtime

    • Run Time: View Runtime Graph
    • Efficiency: View Efficiency Graph
    • Battery type: Lead-acid battery
    • Battery voltage: 24 V
    • Number of battery filled slots: 1
    • Number of battery free slots: 0
    • Battery recharge time: 4 h
    • Battery life: 3…5 year(s)
    • Replacement battery: APCRBCV203
    • Battery charger power: 30 W rated

    Communications & Management

    • Alarm: Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
    • Free slots: 1
    • Control panel: Multifunction LCD status and control console

    Surge Protection and Filtering

    • Surge energy rate: 600 J
