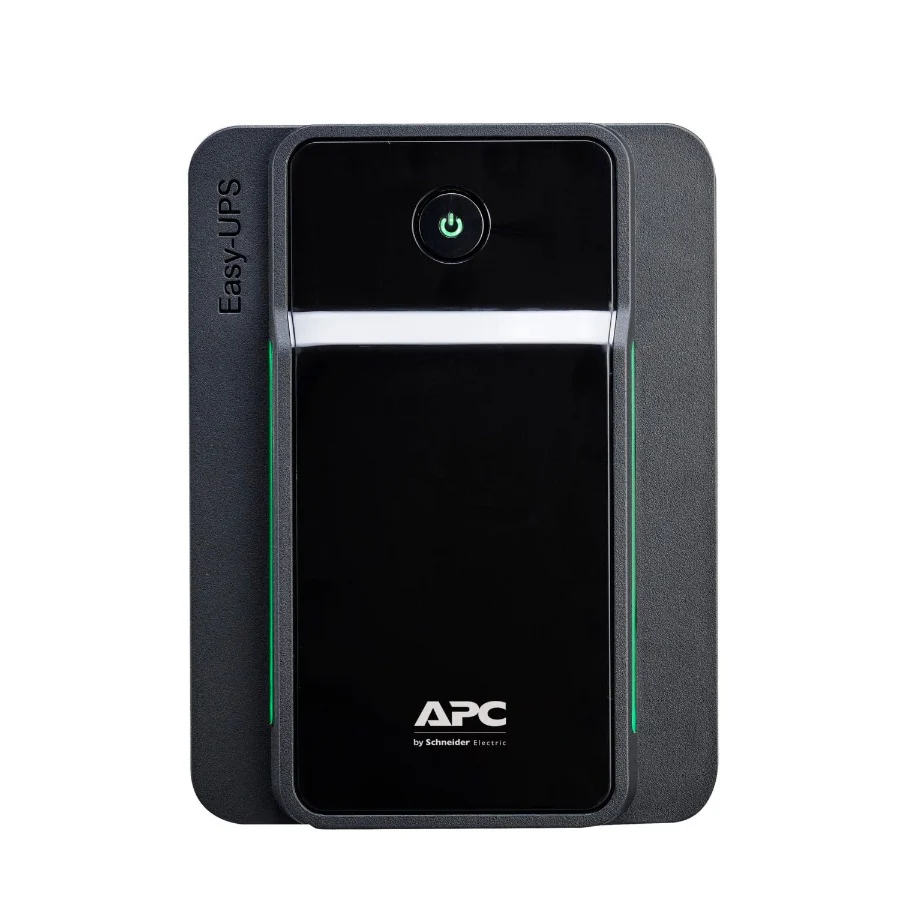

APC Easy UPS BVX 700VA, 230V, 4 IEC Sockets, AVR BVX700LI
This APC Easy UPS provides power protection for unstable power conditions in homes and small offices, ensuring consistent and reliable connectivity at the most critical moments. The 700VA tower UPS has 4 total outlets, all of which provide battery back up and surge protection. It has a surge energy rating of 273 Joules. It features Automatic Voltage Regulation to correct voltage dips and surges to proper levels.
OVERVIEW
- Input voltage: 230 V AC 1 phase
- Output voltage: 230 V AC 1 phase
- Rated power in W: 360 W
- Rated power in VA: 700 VA
- Plug standard: IEC 60320 C14
- Output connection type: 4 IEC 320 C13
- Cable length: 1.22 m
- Number of cables: 1
- Battery type: Lead-acid battery APCRBC110
TECHNICAL SPECS
General
- Max runtime: 120 min
- Number of power module free slots: 0
- Number of power module filled slots: 0
Physical
- Height: 13.8 cm
- Width: 9.8 cm
- Depth: 31 cm
- Net weight: 4.2 kg
- Mounting support: Floor
- USB compatible: No
Input
- Network frequency: 50/60 Hz +/- 5 Hz auto-sensing
- Input voltage limits: 140...3000 V 230 V AC
- Cos phi: 0.51
Output
- Maximum configurable power in W: 360 W
- Output frequency: 50/60 Hz +/- 1 Hz sync to mains
- UPS type: Line interactive
- Wave type: Stepped approximation to a sinewave
- Full load runtime: 00:00:01 360 W
- Half load runtime: 00:06:00 180 W
- Maximum configurable power in VA: 700 VA
- Transfer time: 6 ms typical : 10 ms maximum
Environmental
- Ambient air temperature for operation: 0…40 °C
- Relative humidity: 0…95 % non-condensing
- Operating altitude: 0...3000 m
- Ambient air temperature for storage: -15…40 °C
- Acoustic level: 40 dBA
- IP degree of protection: IP20
Batteries & Runtime
- Number of battery free slots: 0
- Battery recharge time: 8 h
- Battery voltage: 12 V
- Battery capacity: 7.0 Ah
- Battery type: Lead-acid battery APCRBC110
Communications & Management
- Control panel: LED Status display with on line : On battery
- Alarm: Alarm when on battery : distinctive low battery alarm
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
This APC Easy UPS provides power protection for unstable power conditions in homes and small offices, ensuring consistent and reliable connectivity at the most critical moments. The 700VA tower UPS has 4 total outlets, all of which provide battery back up and surge protection. It has a surge energy rating of 273 Joules. It features Automatic Voltage Regulation to correct voltage dips and surges to proper levels.
OVERVIEW
- Input voltage: 230 V AC 1 phase
- Output voltage: 230 V AC 1 phase
- Rated power in W: 360 W
- Rated power in VA: 700 VA
- Plug standard: IEC 60320 C14
- Output connection type: 4 IEC 320 C13
- Cable length: 1.22 m
- Number of cables: 1
- Battery type: Lead-acid battery APCRBC110
TECHNICAL SPECS
General
- Max runtime: 120 min
- Number of power module free slots: 0
- Number of power module filled slots: 0
Physical
- Height: 13.8 cm
- Width: 9.8 cm
- Depth: 31 cm
- Net weight: 4.2 kg
- Mounting support: Floor
- USB compatible: No
Input
- Network frequency: 50/60 Hz +/- 5 Hz auto-sensing
- Input voltage limits: 140...3000 V 230 V AC
- Cos phi: 0.51
Output
- Maximum configurable power in W: 360 W
- Output frequency: 50/60 Hz +/- 1 Hz sync to mains
- UPS type: Line interactive
- Wave type: Stepped approximation to a sinewave
- Full load runtime: 00:00:01 360 W
- Half load runtime: 00:06:00 180 W
- Maximum configurable power in VA: 700 VA
- Transfer time: 6 ms typical : 10 ms maximum
Environmental
- Ambient air temperature for operation: 0…40 °C
- Relative humidity: 0…95 % non-condensing
- Operating altitude: 0...3000 m
- Ambient air temperature for storage: -15…40 °C
- Acoustic level: 40 dBA
- IP degree of protection: IP20
Batteries & Runtime
- Number of battery free slots: 0
- Battery recharge time: 8 h
- Battery voltage: 12 V
- Battery capacity: 7.0 Ah
- Battery type: Lead-acid battery APCRBC110
Communications & Management
- Control panel: LED Status display with on line : On battery
- Alarm: Alarm when on battery : distinctive low battery alarm
